ZYB...A復合氣泵
詳細介紹
ZYB...A
1.說明
ZYB...A系列油潤滑真空壓力復合泵能同時使用真空吸氣和排送壓縮空氣、具有噪聲小、溫升低、壽命長等特點，廣泛應用于印刷、包裝、印鐵、卷煙、除塵、陶瓷、燈具及糧食加工等行業...

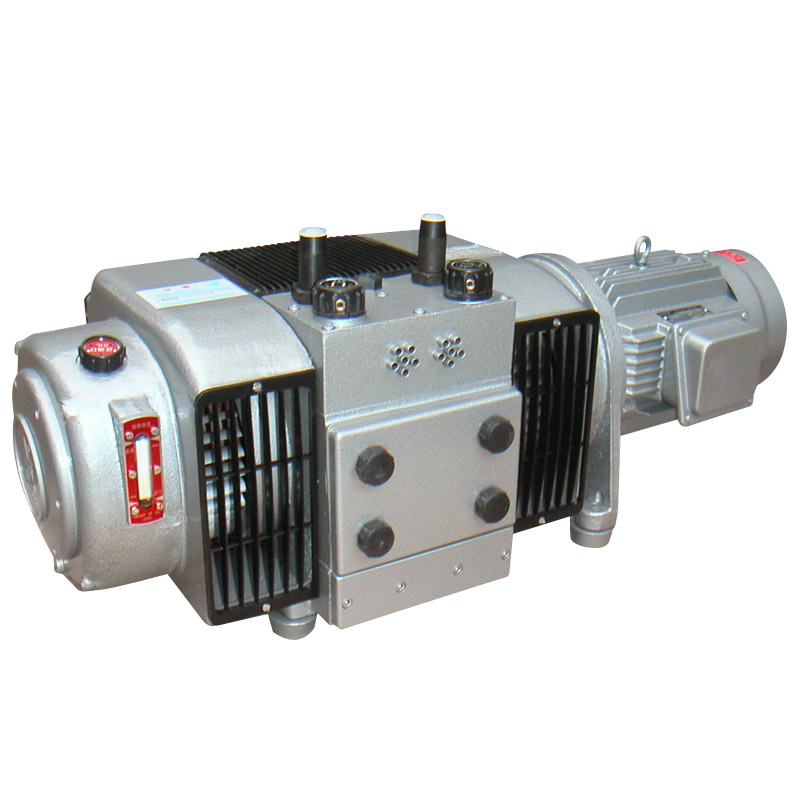

2.圖片

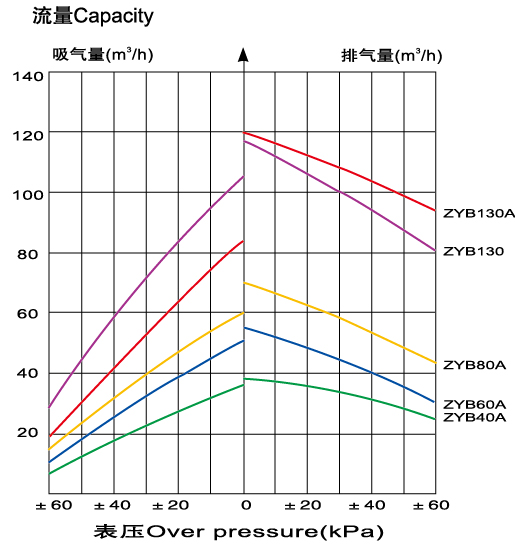

3.性能曲線
4.技術規格及參數
| Item/Type | ZYB40A | ZYB60A | ZYB80A | ZYB130A | ZYB130 | |
| Unit | ||||||
| Capacity | m3/h | 60 | 60 | 80 | 130 | 130 |
| Rated Vacuum | kPa | -60 | -60 | -60 | -60 | -60 |
| Supplement Vacuum | kPa | -20 | -20 | -30 | ||
| Rated Pressure | kPa | 60 | 60 | 60 | 60 | 60 |
| Motor Rating | kW | 1.5 | 2.2 | 3 | 5.5 | 5.5 |
| Motor Speed | r/min | 1420 | 1420 | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 77 | 78 | 80 | 82 | 82 |
| Dia.of connecting pipe | mm | 27 | 27 | 34 | 27/42/48 | 42 |
| Net Weight | kg | 95 | 115 | 125 | 180 | 180 |
| Gross Weight | kg | 115 | 135 | 150 | 210 | 210 |
| Pump Size | mm | 721x313x280 | 788x405x350 | 808x405x350 | 965x405x350 | 1031x405x350 |
| Package Size | mm | 850x465x470 | 930x560x540 | 940x560x540 | 1250x550x570 | 1300x550x570 |

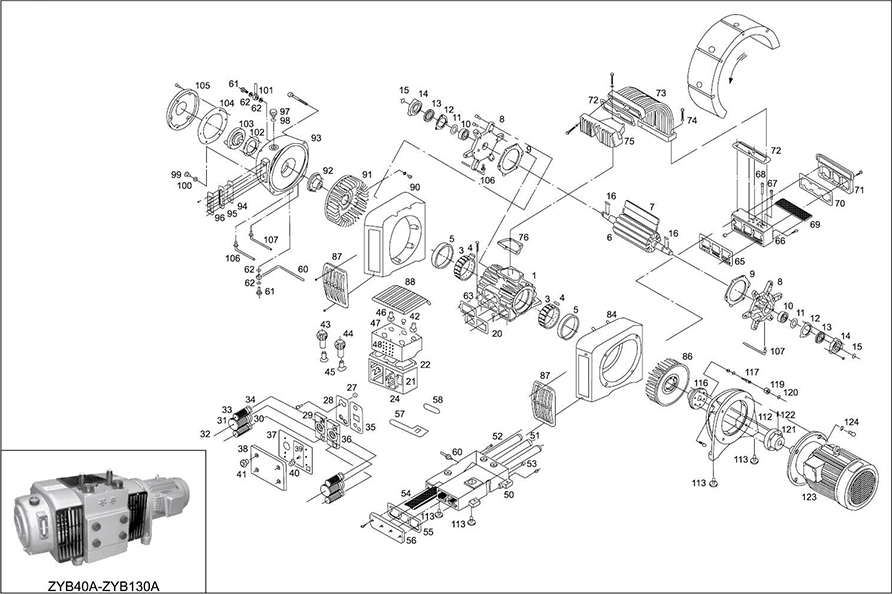

5.氣泵分解圖
6.氣泵分解圖零配件序號及名稱
| 序號 | 中文名稱 | English Name | 序號 | 中文名稱 | English Name | 序號 | 中文名稱 | English Name |
| 主要部件 | Basic Parts | 39 | 螺釘 | Screw | 冷卻部件 | Air-cooling | ||
| 1 | 泵體 | Cylinder | 40 | 壓簧 | Spring | 84 | 右風扇罩殼 | Fan cover |
| 3 | 卸荷環 | Carrierring | 41 | 旋鈕 | Knob | 86 | 右風扇 | Fan |
| 4 | 小滑片 | Vanes for carrier ring | 42 | 風管接頭 | Value or suction nozzle | 87 | 風罩蓋 | Protection grill |
| 5 | 端套 | Retaining ring | 43 | 真空調節閥部件 | Vacuum regulating value | 88 | 上風罩 | Cover |
| 6 | 轉子 | Rotor | 44 | 排氣調節閥部件 | Pressure regulating value | 90 | 左風扇罩殼 | Fan cover |
| 7 | 滑片 | Blade | 45 | 氣門 | Regulating value part | 91 | 左風扇 | Fan |
| 8 | 端蓋 | End cover | 46 | 風管接頭 | Value | 92 | 油泵聯軸節 | Fan hub |
| 9 | 墊片（端蓋墊） | End cover gasket | 47 | 扁螺母 | Nut collar | 潤滑部件 | Lubrication | |
| 10 | 軸承 | Roller bearing | 48 | 塑料管 | Platic pipe | 93 | 油箱 | Oil tank |
| 11 | 波形彈性墊圈 | Spring washer | 油分離部件 | Oil separator side | 94 | 油標墊 | Gasket | |
| 12 | 軸承蓋墊 | Gasket | 50 | 底座 | Oil separator | 95 | 油標體 | Gasket |
| 13 | 油封 | Shaft seal | 51 | 二級濾管 | Separator pipe | 96 | 油面標牌 | Oil sight glass |
| 14 | 軸承蓋 | Oil seal housing | 52 | 螺釘 | Screw | 97 | 注油蓋 | Oil filler plug |
| 15 | 擋圈（卡簧） | Clrclip | 53 | 回油套 | Nozzle | 98 | 注油蓋墊 | Gasket |
| 16 | 鍵 | Key | 54 | 二級濾網 | Oil separator mesh | 99 | 放油螺塞 | Oil darin plug |
| 氣包部件 | Filter Side | 55 | 前蓋墊 | Gasket | 100 | 墊圈 | Gasket | |
| 20 | 濾清氣包墊 | Gasket | 56 | 前蓋 | Oil separator cover | 101 | 油箱回油管 | pipe |
| 21 | 濾清氣包 | Filter housing | 57 | 泵體前墊片 | Gasket | 102 | 油泵墊 | Gasket |
| 22 | 調節氣包墊 | Gasket | 58 | 泵體后墊片 | Gasket | 103 | 油泵部件 | Oil pump |
| 23 | 螺柱 | Threaded pin | 60 | 油管 | Oil pipe | 104 | 油箱蓋墊 | Gasket |
| 24 | 螺柱 | Threaded pin | 61 | 鉸接螺栓 | Banjo bolt | 105 | 油箱蓋 | Oil tank cover |
| 25 | 螺釘 | Shaft screw | 62 | 紫銅墊圈 | Sealing ring | 106 | 短給油管 | Oil pipe |
| 26 | 調節氣包 | Adjusting housing | 65 | 底座后墊片 | Gasket | 107 | 長給油管 | Oil pipe |
| 27 | 墊圈 | Gasket | 66 | 冷卻管座 | Pre-separator box | 傳動部件 | Drive | |
| 28 | 海綿墊 | Gasket | 67 | 短塑料管 | Separator pipe | 112 | 支架（電機聯接架） | Motor flange |
| 29 | 過濾器座 | Filter base | 68 | 長塑料管 | Separator pipe | 113 | 底腳 |
